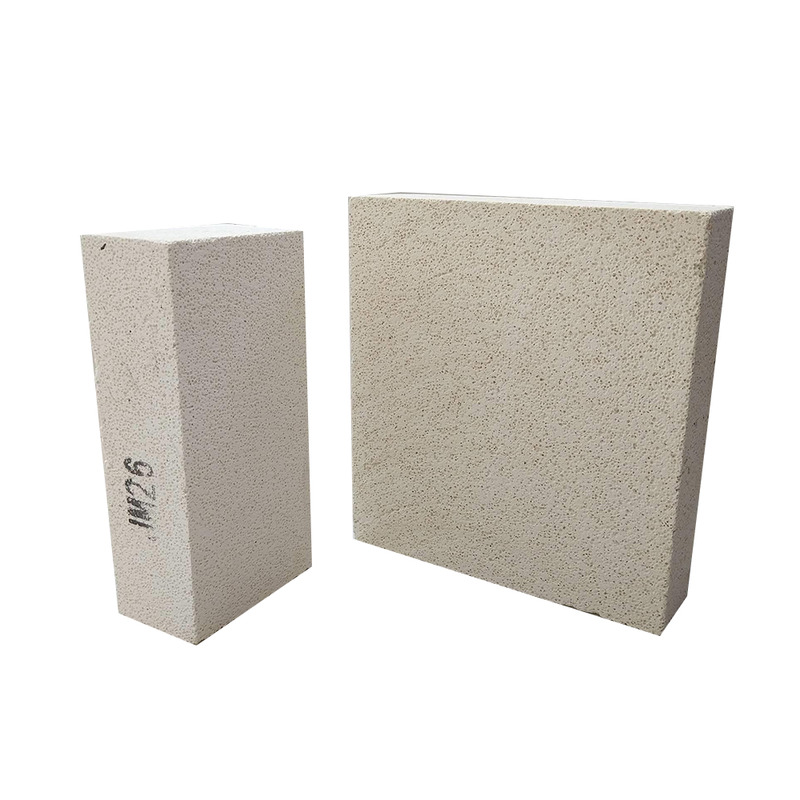

Lightweight Volume Stability Insulation Brick Mullite Insulation Brick For Kiln Competitive Price

1.0 Tons
MOQ
Lightweight Volume Stability Insulation Brick Mullite Insulation Brick For Kiln Competitive Price
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Shape: Brick
Material: Silicate
SiO2 Content (%): 50%-99%
Al2O3 Content (%): /
MgO Content (%): 0.8%-1.2%
CaO Content (%): 0.34%
CrO Content (%): 0.1%-0.3%
SiC Content (%): 1.2%-1.4%
Model Number: TKIB
Processing Service: Bending, Welding, Punching, Decoiling, Cutting, Moulding, Cutting, Moulding
Sample: Provide
Advantage: High Thermal Stability
Keyword: Insulation
Density: 1.2g/cm3
Certificate: ISO9001
size: Customized Size
Cold Crush Strength: 18-25
Feature: Volume Stability
Usage: Furnace Liner
基本情報
証明: ISO9001
Model Number: TKIB
お支払配送条件
Packaging Details: Pallet With Film Wrapped
Supply Ability: 1000 Ton/Tons per Month
製品の説明

Insulation Bricks

TK BRICKS PRODUCES several grades of insulating brick for use in applications frm 1260℃ to 1760℃.Each grade of brick is formulated to meet specific thermal and physical requirements.After firing each brick is machined to close dimensional tolerances.Insulating bricks are manufactured by exceptionally high purity clay and other ceramic materials.The carefully graded organics which are used during the manufacturing process burn out during firing to give a uniform pore structure.
WE mainly have below 3 grades for the Insulation Bricks:
1.High Alumina Insulation Brick:
High-alumina lightweight bricks are characterized by high temperature resistance,
corrosion resistance and high compressive strength. They are mainly used in ceramic tunnel kiln, roller kiln, shuttle kiln,
various heating furnaces in the steel industry, coking furnaces and other thermal equipment.
TECHNICAL DATA SHEET
ITEM
LG-0.6
LG-0.7
NG-0.8
NG-0.9
NG-1.0
Bulk Density G/M3
0.6
0.7
0.8
0.9
1.0
Cold Crushing Strength (MPA)
2.0
2.5
3.0
3.5
4.0
Thermal Conductivity(350 ℃W/M.K)
0.16
0.25
0.25
0.3
0.35
2.Fireclay Insulation Brick
Fire Clay insulation brick is a heat-insulating refractory product made from fire clay.
Our products are produced by the method of burning added materials. The main raw materials are refractory clay, floating beads and
flint clay powder, adding binder and sawdust. The main processes are: compounding, mixing, forming, drying, firing, cutting and so
on. The finished product has a bulk density range of 0.6-1.5g/cm3.
TECHNICAL DATA SHEET
ITEM
NG-0.6
NG-0.8
NG-1.0
NG-1.2
NG-1.3
Bulk Density (G/Cm)
0.6
0.8
1.0
1.2
1.3
CCS（MPA）
1.0
2.5
3.5
4.3
4.5
Thermal Conductivity(350 ℃W/M.K)
0.25
0.35
0.4
0.5
0.55
3.JM Series Insulation Brick
Mullite insulating brick is a kind of highly efficient, energy saving,low carbon, environment friendly products which are produced according to ASTM standard. JM series products are the best lining and insulation materials in all types of industrial furnaces in the field of Metallurgy, Aluminum, Petrochemical, Ceramics,Power and Glass.

TECHNICAL DATA SHEET
ITEM

JM-23
JM-26
JM-28
JM-30
Bulk Density G/M3

600
800
890
1030
Classification Temperature/℃

1260
1430
1540
1650
Cold Crushing Strength (MPA)

1.2
2.4
2.6
2.8
Permanent Liner Change %
℃XHr 1230x24
-0.5
-0.5
-0.8
-0.9



Thermal Conductivity
400℃
0.17
0.24
0.3
0.4
600℃
0.19
0.27
0.32
0.42
800℃
0.22
0.3
0.35
0.44
1000℃
0.25
0.32
0.38
0.45
1200℃
-
0.35
0.39
0.47
Al2O3 %
45
55
65
72
Fe2O3 %
0.7
0.6
0.3
0.3
SiO2 %
50
42
33
26
TiO2 %
1.2
1.1
0.9
0.5
CaO+MgO %
0.7
0.3
0.2
0.3
K2O+Na2O %
1.3
1.1
0.8
0.2
